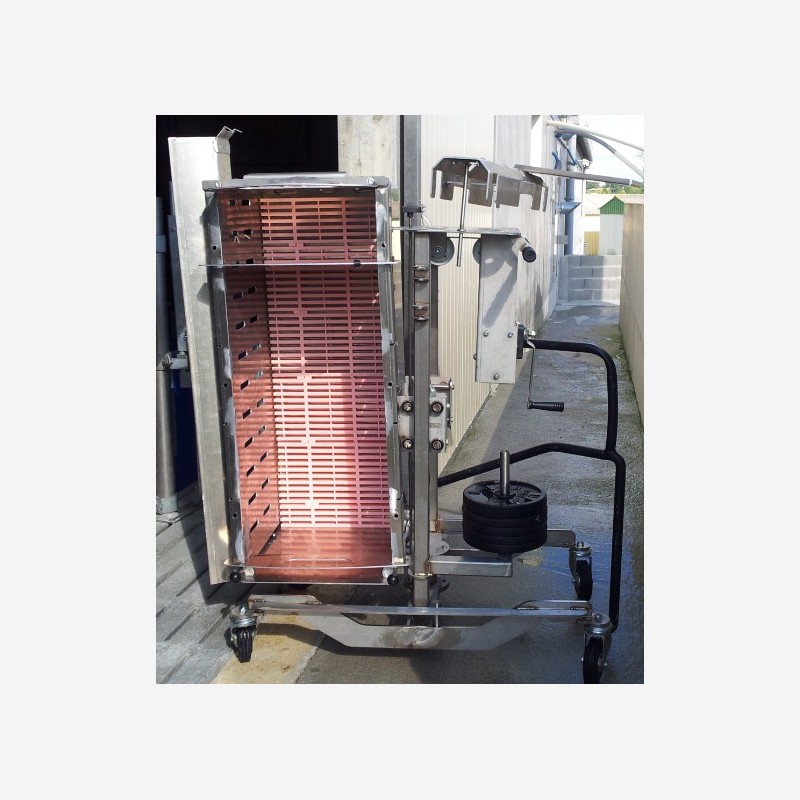

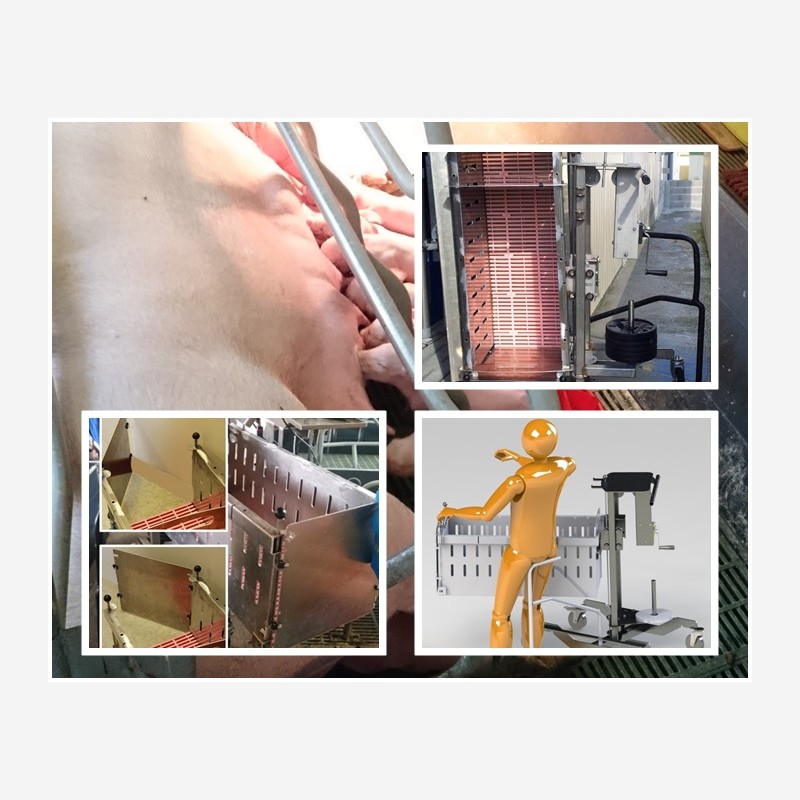

Piglet treatment trolley

Piglet treatment trolley

Multipurpose:

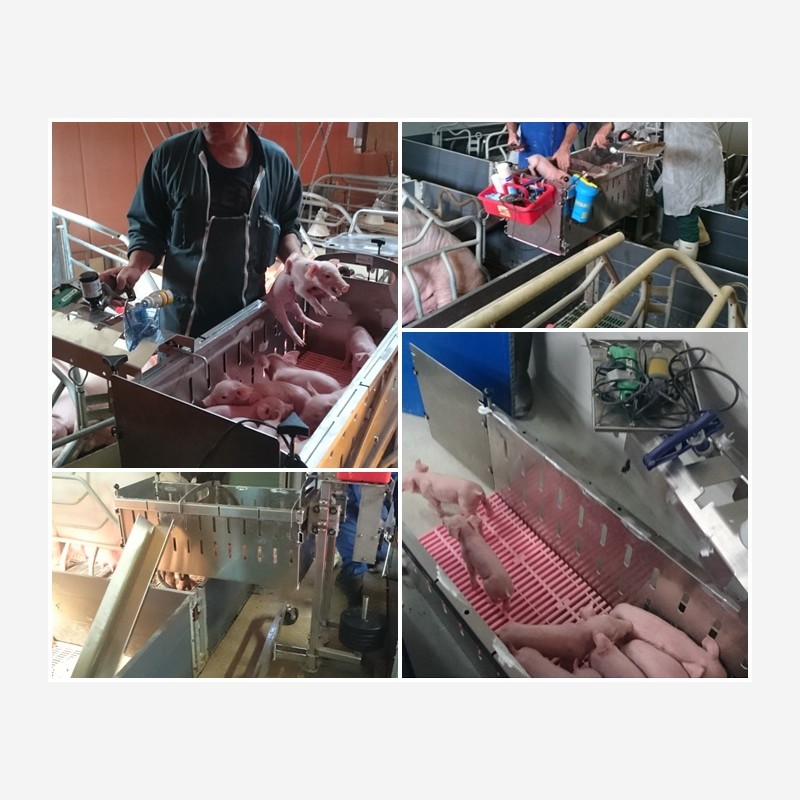

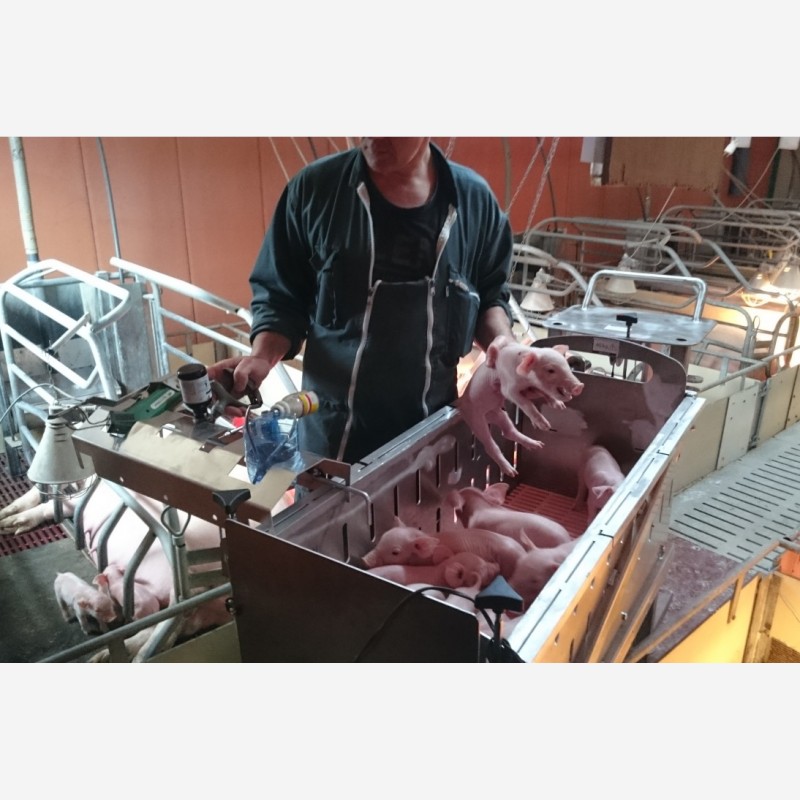

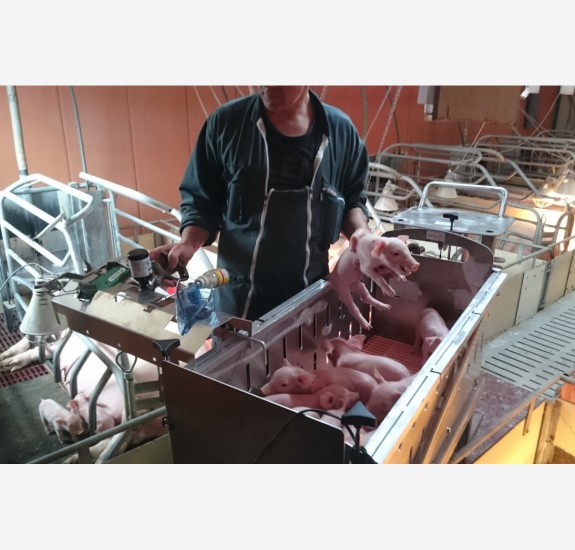

- To make the necessary care for piglets (iron injection, cutting tails, cutting or filing of teeth, castration of male and antibiotic injection) and to avoid taking animals to the ground, the main source of physical constraints. - Removal of piglets without stooping. - Moves easily in swine maternity wards. - Case 360° swivel.

Comfort:

- Ergonomic winch system to adjust the box to the desired height. - Speed ​​of implementation.

Maneuverability:

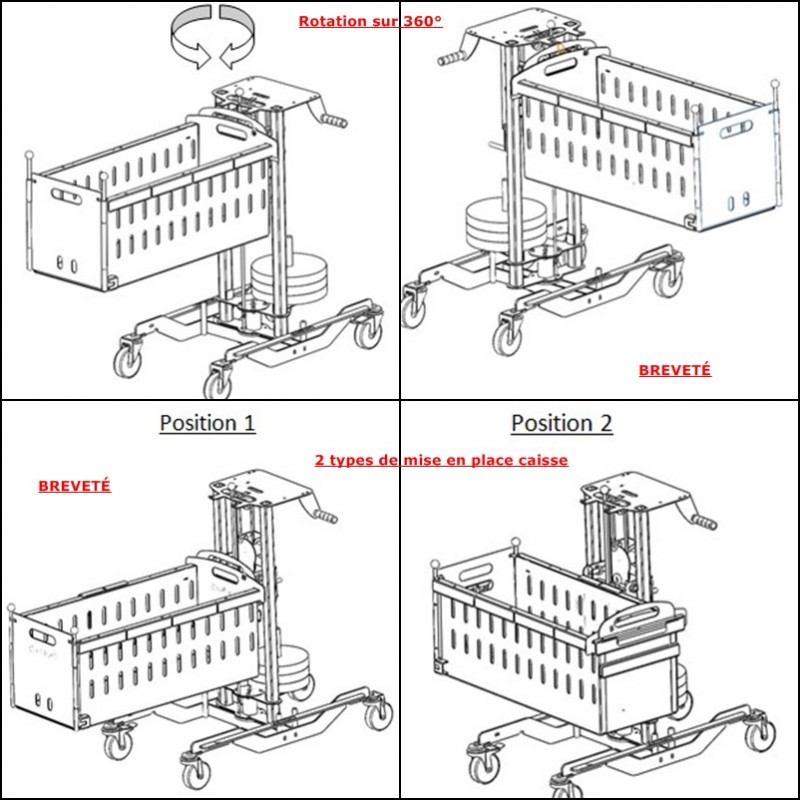

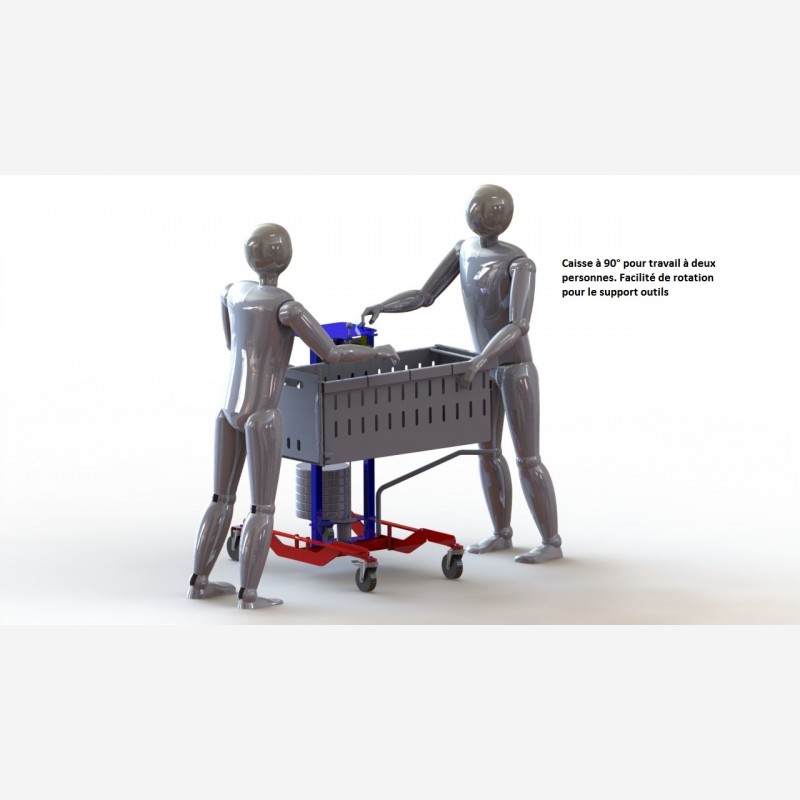

- Compact. - Ability to rotate the box 360° for better use in the corridors. - 4 steering wheels for better displacement on the grating.

Robust:

- Frame in stainless steel. Box in aluminum: corrosion resistance and easy to clean. - Burden of cash up to 40 kg

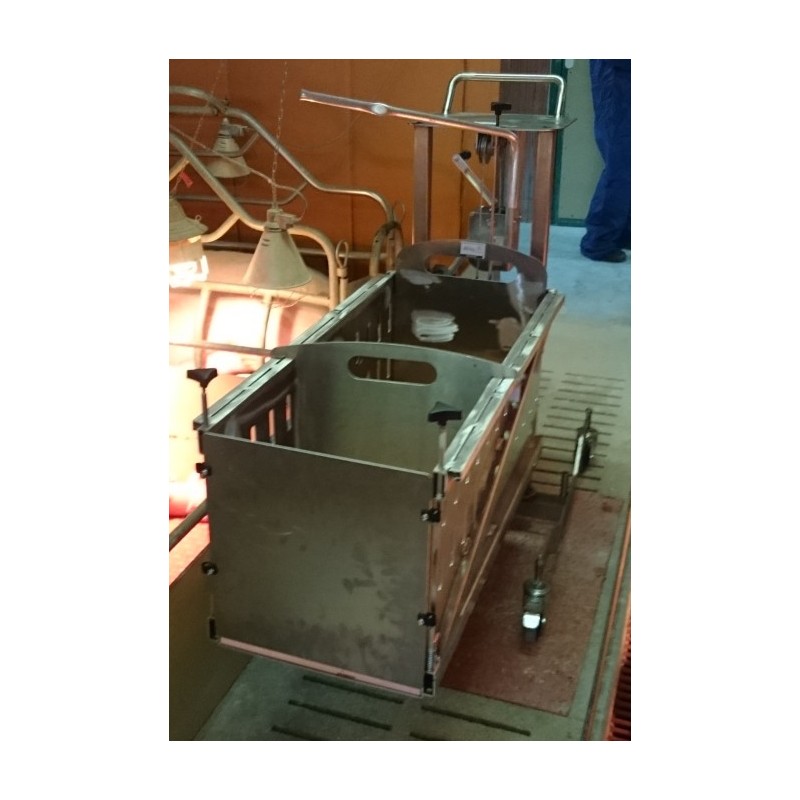

Autonomic aluminum box:

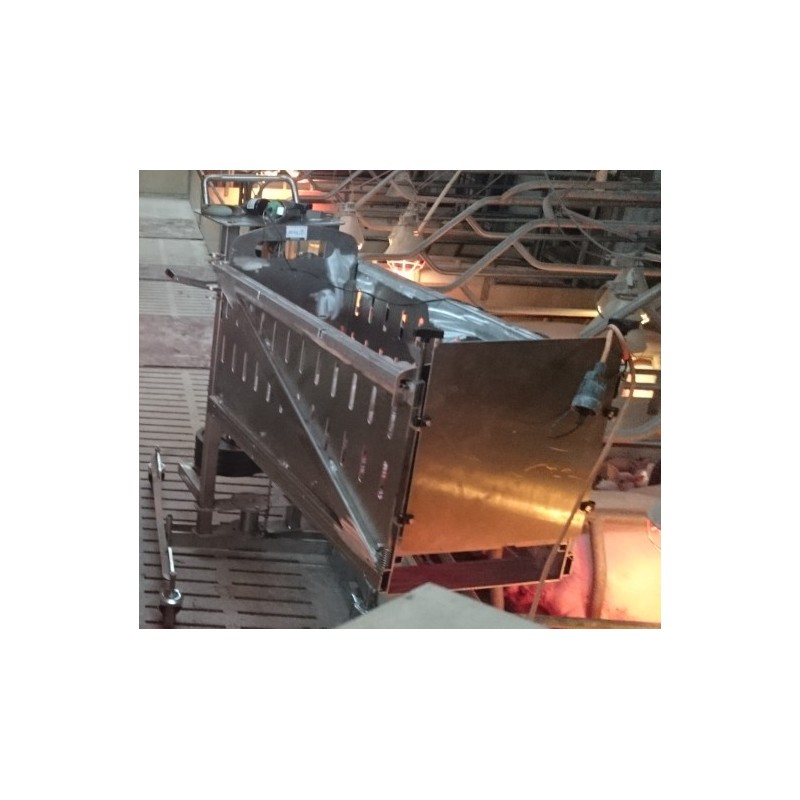

- Quick opening and closing door system (left and right). - Adjustable Subdivision (removable partition with handle). - Full background with grating.

Available accessories:

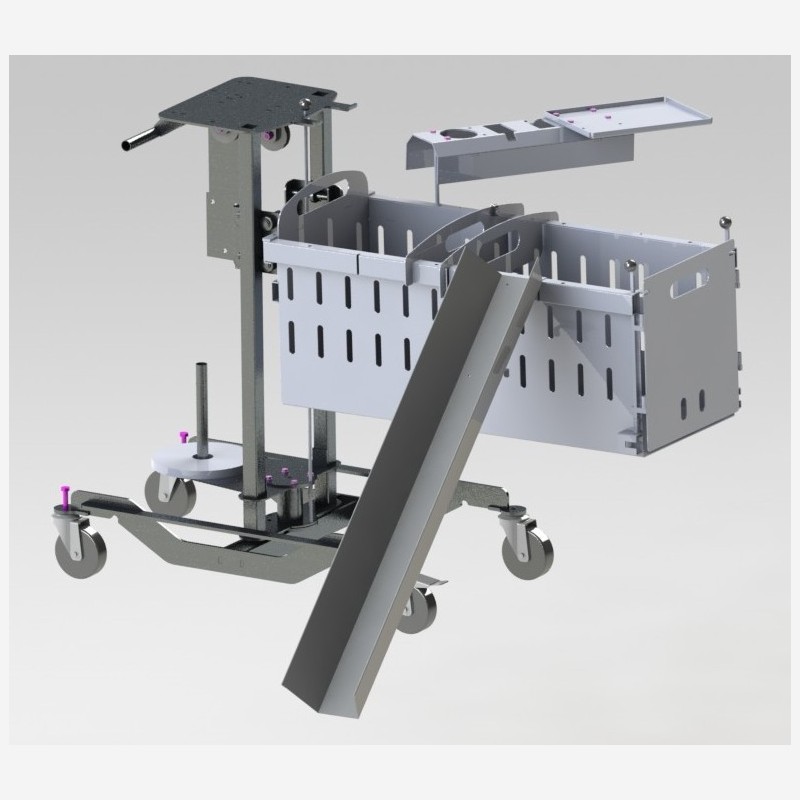

- Seat, range-shelf tools, toboggan, grating ...

Size:

- External dimensions carriage: 98 (L) x 63 (W) x 121 (h) cm - Inner box dimensions: 100 (L) x 39 (W) x 44 (H) cm - Adjustable box depth: 37-44 cm

Weight:

- Trolley 45 kg (depending on configuration) - Box: 20 kg - Toboggan: 1.2 kg - Support tool: 2.3 kg

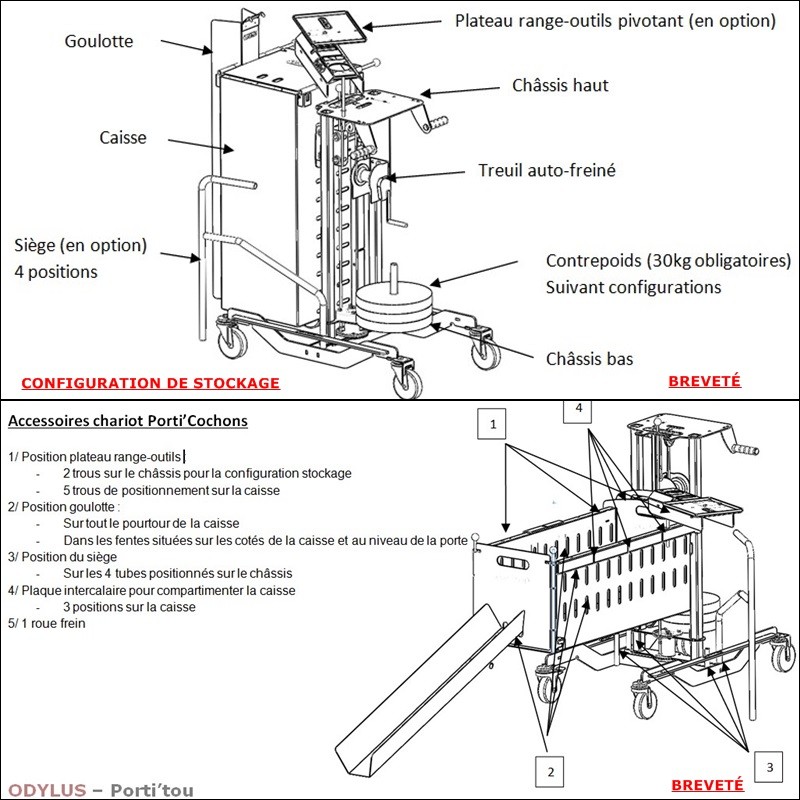

Description of components:

- Industrial wheels of 100 mm diameter. 360° rotative.

- Brake (optional). - Winch to raise the box until 100 cm. - Box with removable gratings. Metal spacer for partitioning (3 settings). - Box open or not from both side (on demand).

Manufacturing in France (Brittany)
